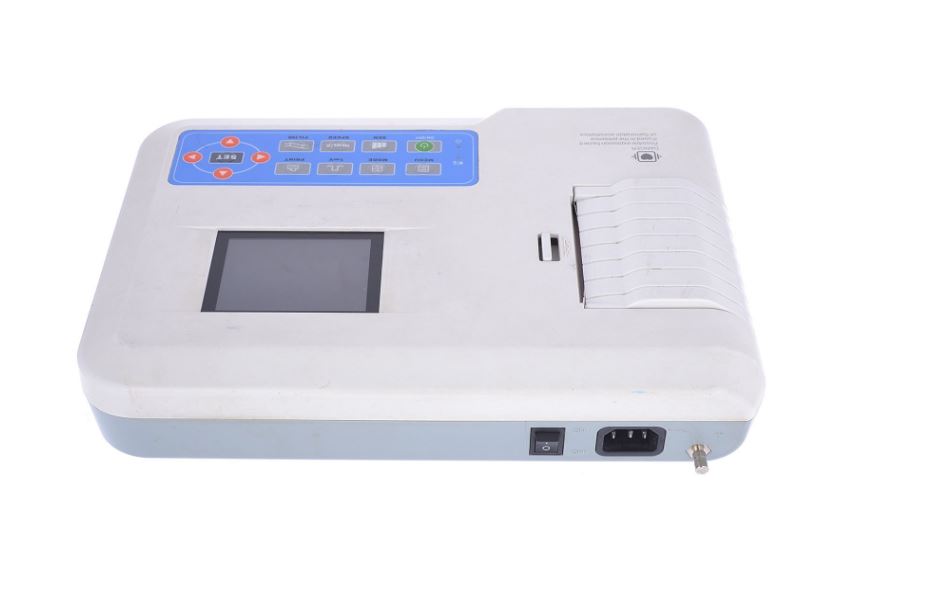

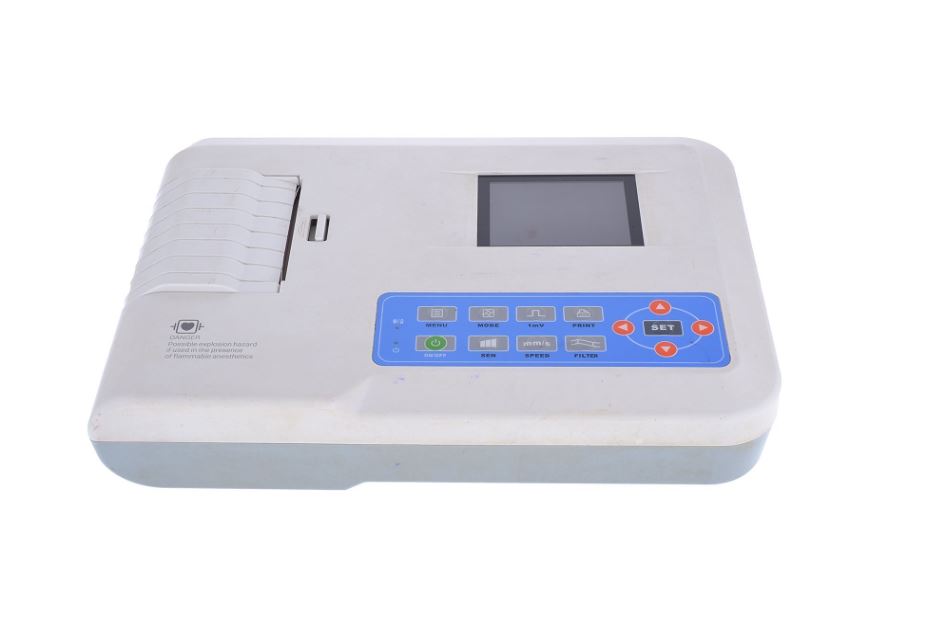

Contec Digital 3 Channel ECG Machine

Description

Description

• • 3.5′ TFT screen
  • 12 leads simultaneous display
  • Thermal printing system
  • Power supply both AC and DC
  • High capacity built-in lithium rechargeable battery
  • Battery power supports continually record 150 pieces of ECG
  • Built-in Database
  • Store more than 1000 pieces of archive
  • Digital signal processor for filter
  • Auto-measurement,auto-analysis and auto interpretation functions
  • Lead:Standard 12 leads
  • Patient leak current:<10uA
  • Input impedance:>=50M
  • Frequency response:0.05Hz-150Hz(-3dB

)

• Time constant:Time constant>3.2s
• CMRR:100dB
• Dimension of recording paper: 80mm(w)x20m(L)paper
• Paper speed:25mm/s,50mm/s
• Sensitivity choice:5,10,20mm/mV.Standard sensitivity is 10mm/mV+0.2mm/mV
• Measurement parameters :HR,P-R interval , PDuration, QRS Duration,Q-T interval,Q-Tc,P Axis,QRS Axis,T Axis,R(V5), S› (V1),R(V5)+S(V1)
• Product safety type:Class 1.Type CF, there is defibrillation and pacing protection circuit.
• Enduring polarization voltage:+300mV
• Noise level:≤15µVp-p
• Size:315mm(L)×215mm(W)×77mm(H)
• Net Weight:2.25Kg
