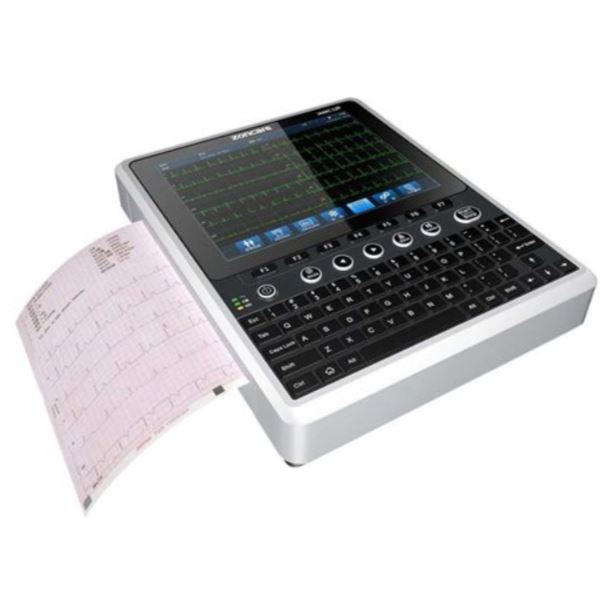

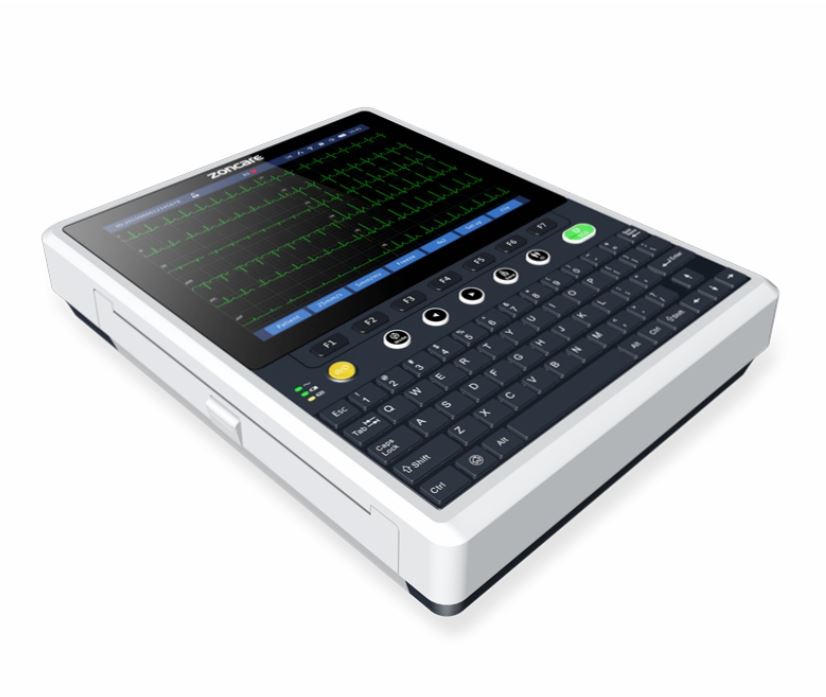

Cooperate with University of Glasgow, iMAC 120 can efficiently improve the accuracy of the measurement and credibility of auto-analysis. iMAC 120 is a 12 channel resting ECG, which offers a bright color display and touch operation. It is an ideal option for practice and clinic.
• Compact and portable design
• 10.4 inch high resolution TFT LCD with touch screen
• Full alphanumeric silicon keyboard with shortcut keys, efficient in operation
• Support sending ECG report by Email
• Support double-pole pacemaker detection
• New platform application, great improvement in quality and performance
• New menu and interface style, streamlined workflow
• Onscreen operation guide to check the ECG procedure
• Pacemaker detection function
• Glasgow ECG analysis algorithm
• ST segment elevation myocardial infarction diagnosis ability is in the industry leading position
• It can be connected by WIFI
- Paper Speed: 5, 6.25, 12.5, 25, 50mm/s
- Recording Mode : Thermal array printer – 8 dot/mm (Vertical), 40 dot/mm (Horizontal, 25mm/s)
- Paper Type : Z-Fold Paper
- Paper Size : 210/216mm x 140mm–20m
- Filter Setting:
- AC : off / 50 / 60 Hz;
- EMG : off / 25 / 35 / 45 / 75 / 100 / 150 / 250 / 350 Hz;
- DFT : off / 0.01 / 0.05 / 0.3 / 0.6 Hz;
- Power Supply:
- AC : 100-240V, 50Hz/60Hz, 75VA
- DC : Built-in Lithium Battery
- Battery Capacity : 4400mAH
- Battery Backup (Continuous Operation) : 3 Hours
- Storage capacity of maximum 1000 ECGs
- Physical Specification :
- Machine Dimension : 285 mm x 360 mm x 94 mm (L x W x H)
- Machine Net Weight : 3.7 kg
- Environmental conditions :
- Transportation temperature : -20°C to +55°C
- Relative humidity : 10% to 95%
- Operation temperature : 5°C to +40°C
